5G Antenna Customization From RF element- Our Technological Leaps
In our increasingly connected society, 5G antenna technology stands as the cornerstone of a communication revolution. As the critical interface between wireless networks and devices, these advanced antennas are reshaping how we live, work, and interact with technology on a daily basis.
The journey from 4G to 5G antennas represents one of the most significant transformations in wireless communication history. While 4G networks primarily relied on passive antenna systems with limited capabilities, 5G antenna technology has embraced active systems that offer unprecedented performance improvements.
This evolution becomes clear when examining the key differences between generations:
| Generation | Key Antenna Technologies | Primary Advancements |
|---|---|---|
| 4G Era | Passive antennas, MIMO (4T4R/8T8R), Remote Electrical Tilt (RET) | Improved spectral efficiency, multi-band operation, remote optimization capabilities - |
| 5G Era | Active Antenna Units (AAU), Massive MIMO, Beamforming | Large-scale arrays, precise beamforming, significantly enhanced coverage and capacity - |
The shift from traditional passive antennas to Active Antenna Systems (AAS) marks a fundamental architectural change. In 5G systems, radio frequency components are integrated directly with antenna elements, eliminating feeder cable losses and enabling more precise signal control. This integration allows 5G antennas to support massive MIMO (Multiple Input Multiple Output) configurations, utilizing dozens or even hundreds of antenna elements to serve multiple users simultaneously on the same frequency resources.
The impact on daily life is profound. With data rates up to 100 times faster than 4G and latency reduced to mere milliseconds, 5G antennas enable applications ranging from enhanced mobile broadband to mission-critical Internet of Things (IoT) communications. From seamless ultra-high-definition video streaming to autonomous vehicles and remote surgery, 5G antenna technology is the invisible force powering our connected future.
Types of 5G Antennas and Their Applications:
1, Massive MIMO Antennas: Massive MIMO antennas represent the backbone of 5G infrastructure, particularly in urban environments. By utilizing large-scale antenna arrays—often with 32 or 64 channels—these systems dramatically increase network capacity and spectral efficiency. Through advanced beamforming techniques, Massive MIMO antennas can focus signals precisely toward user devices, reducing interference and improving signal quality. This technology is essential for supporting the high user densities found in cities, stadiums, and other crowded venues.
2, 5G Panel Antennas: Panel antennas offer an optimal balance between performance and form factor, making them versatile solutions for various deployment scenarios. Their compact design and directional radiation patterns make them ideal for both indoor and outdoor applications where space constraints exist. Modern panel antennas support multiple frequency bands and can be customized to address specific coverage requirements.
3, 5G Sector Antennas: Sector antennas provide wide-area coverage in cellular networks, typically covering 60° to 120° arcs in base station configurations. These antennas are crucial for expanding network reach in suburban and rural areas while efficiently managing interference between adjacent sectors. Recent advancements have improved their efficiency and power handling capabilities, making them more effective than ever before.
4, 5G Ceiling Antennas: Designed primarily for indoor applications, ceiling antennas ensure comprehensive coverage in offices, shopping malls, airports, and other large indoor spaces. Their discreet design allows for seamless integration into architectural environments while providing reliable connectivity for the growing number of IoT devices and user equipment in indoor settings.
5, Small Cell Antennas: As 5G networks expand, small cell antennas have become increasingly important for filling coverage gaps and adding capacity in dense urban environments. These low-power, short-range solutions are deployed on street furniture, building walls, and inside premises to enhance coverage and capacity where traditional macro cells are insufficient.
RF element: Your Expert Partner in Custom 5G Antenna Solutions
At RF element, we stand at the forefront of 5G antenna innovation, offering tailored solutions that address the unique challenges faced by our global clientele. Our expertise spans the entire antenna design and manufacturing process, enabling us to deliver optimized solutions for virtually any application scenario.
1, Frequency Band Customization: We recognize that different markets and applications have distinct frequency requirements. Our team designs antennas supporting both Sub-6 GHz bands for wider coverage and millimeter wave spectra (24-40 GHz) for ultra-high-speed applications. Whether your needs involve standard commercial bands or specialized frequencies for unique applications, we develop solutions that ensure optimal performance across your specified frequency ranges.
2, Gain and Performance Optimization: Different deployment scenarios demand specific gain characteristics and radiation patterns. RF Element engineers excel at balancing these parameters to create antennas that deliver exactly what your project requires. From high-gain directional antennas for long-range links to broad-coverage omni-directional designs for indoor environments, we apply advanced simulation and testing methodologies to ensure every antenna meets its performance targets.

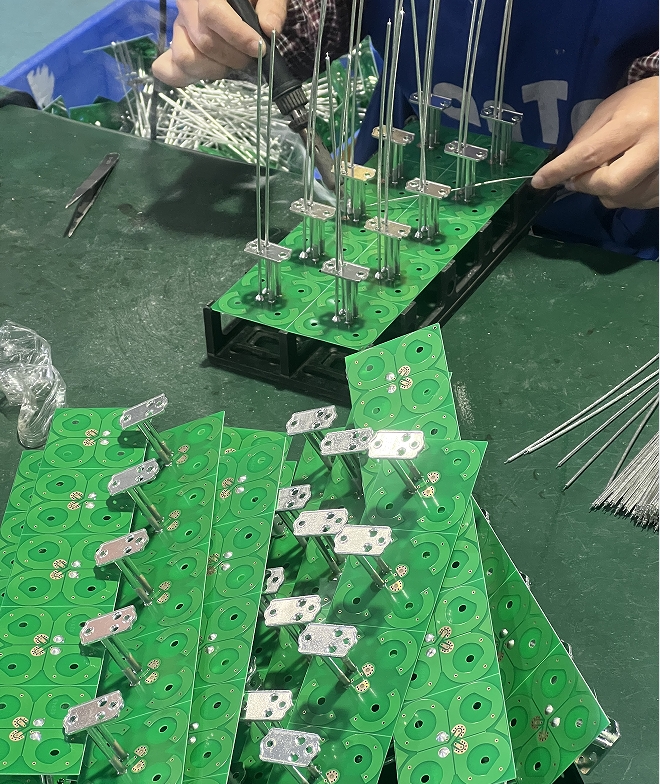

3, Mechanical and Form Factor Adaptations: We understand that aesthetics, environmental factors, and physical constraints often influence antenna selection and deployment. Our customization capabilities include developing antennas with specific dimensions, materials, and mounting options to seamlessly integrate into your environment. From low-profile ceiling mounts to ruggedized outdoor enclosures, we create mechanical designs that complement your physical space while maintaining optimal electrical performance.
4, Application-Specific Designs: Different use cases present unique challenges that demand specialized antenna solutions. Our portfolio includes designs optimized for IoT and Smart City Infrastructure, Industrial Automation, Public Safety and Emergency Services, Transportation and Logistics. Our design process begins with thoroughly understanding your specific operational environment, performance requirements, and constraints. We then engineer solutions that not only meet but exceed expectations, leveraging the latest advancements in materials science and RF engineering.
The Future of 5G Antenna Technology
As we look ahead, 5G antenna technology continues to evolve toward greater integration and intelligence. The emergence of technologies like Reconfigurable Intelligent Surfaces (RIS) promises to further transform how we manage wireless signals, potentially turning entire building surfaces into smart signal reflectors.
At RF element, we're already exploring how artificial intelligence and machine learning can be integrated into antenna systems to enable self-optimizing networks that dynamically adapt to changing conditions and traffic patterns. These advancements will unlock even greater efficiencies and capabilities in the years to come.
