WiFi Antenna
Welcome to the RF element WiFi antenna product center. As a professional WiFi antenna manufacturer, we offer a full range of high-performance WiFi antennas including 2.4GHz WiFi antennas, 5GHz WiFi antennas, dual-band WiFi antennas, omni WiFi antennas, yagi WiFi antennas, panel WiFi antennas, sector WiFi antennas, grid WiFi antennas, and parabolic dish WiFi antennas. Our products support single-band (2400-2500MHz or 5150-5850MHz) and dual-band (2.4/5GHz) operation, with 2x2, 3x3, or 4x4 MIMO configurations to meet diverse network demands.
Our WiFi antenna product line includes:
- 2.4GHz WiFi Antennas: Omni, sector, panel, and yagi types for extended range and reliable connectivity.
- 5GHz WiFi Antennas: High-gain solutions for point-to-point (PTP) links and high-bandwidth applications.
- Dual-Band WiFi Antennas: Versatile 2.4/5GHz antennas for maximum flexibility and future-proofing.
- Specialty WiFi Antennas: Grid and parabolic dish antennas for ultra-long-distance links.
All WiFi antennas undergo rigorous testing to ensure exceptional performance and durability in outdoor environments. Whether you need standard products or customized WiFi antenna solutions, our engineering team is ready to provide expert support. Contact us for a quote.
WiFi Antenna Selection Guide
Page 1 of the WiFi antenna range, with every model on this page compared in one table: fiberglass omni, MIMO omni, MIMO sector, flat panel, yagi and bridge types. Where two values are shown in a column they are listed in 2.4GHz / 5GHz order. Page 2 carries the rest of the range.
| Model | Type | Frequency | Gain (dBi) | Beamwidth (H × V) | Size (mm) | Best for |
|---|---|---|---|---|---|---|
| WiFi Antenna Dual Band 2x2 MIMO Outdoor Omni Antenna | Omni, omni, MIMO | 2400-2500 / 5150-5850 MHz | 8 / 9 | 360° × 10° / 360° × 9° | Φ75 × 1250 | Wide-area 360° hotspot coverage |
| WIFI Antenna 2.4GHz Outdoor Fiberglass Omni Antenna | Omni, omni | 2400-2500 MHz | 8 | 360° × 15° | Φ22 × 560 / Φ20 × 560 | Wide-area 360° hotspot coverage |
| WiFi Antenna Dual Band Outdoor Fiberglass Omni Antenna | Omni, omni | 2400-2500 / 5150-5850 MHz | 9 / 12 | 360° × 15° / 360° × 7° | Φ52 × 1250 | Wide-area 360° hotspot coverage |
| WIFI Antenna 5GHz Outdoor Fiberglass Omni Antenna | Omni, omni | 5150-5850 MHz | 9 | 360° × 12° | Φ22 × 560 / Φ20 × 560 | Wide-area 360° hotspot coverage |
| WIFI Antenna 5GHz Outdoor MIMO Omni Antenna | Omni, omni, MIMO | 5150-5850 MHz | 12 | 360° × 7° | Φ75 × 650 | Wide-area 360° hotspot coverage |
| WIFI Antenna 2.4GHz Outdoor MIMO Omni Antenna | Omni, omni, MIMO | 2400-2500 MHz | 13 | 360° × 8° | Φ75 × 1150 | Wide-area 360° hotspot coverage |
| WiFi Antenna Dual Bands MIMO Outdoor Directional Sector Antenna | Sector, directional, MIMO | 2400-2500 / 5720-5850 MHz | 14 / 16 | 65° × 15° / 90° × 7° | 980 × 128 × 58 | Base-station style sector coverage |
| WIFI Antenna 2.4GHz Outdoor MIMO Directional Sector Antenna | Sector, directional, MIMO | 2400-2500 MHz | 14 | 90° × 15° | 510 × 128 × 58 | Base-station style sector coverage |

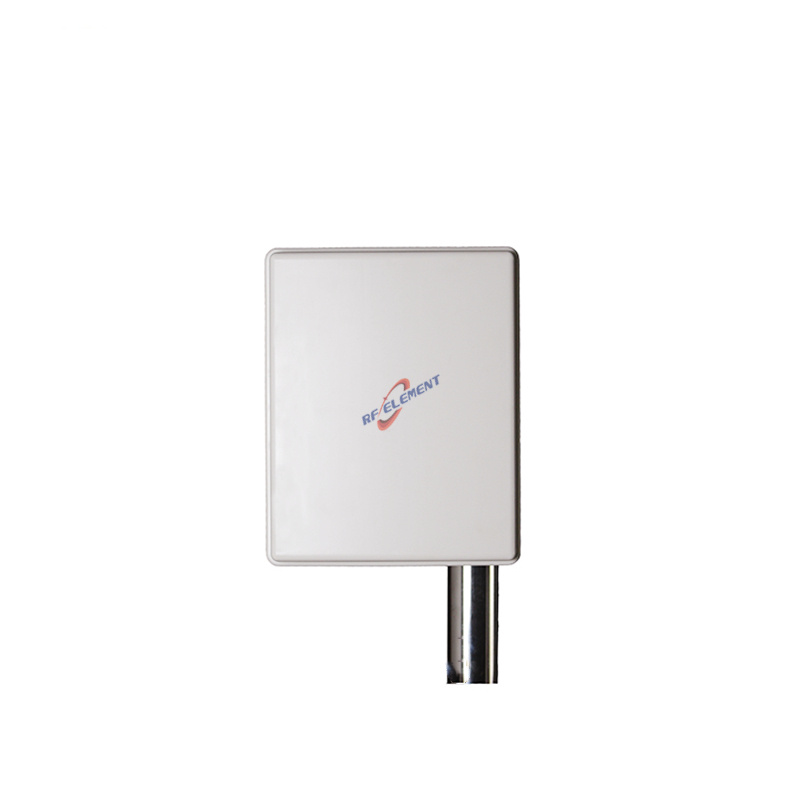

| WIFI Antenna 2.4GHz Outdoor Directional Panel Antenna | Panel, directional | 2400-2500 MHz | 14 | 35° × 30° | 239 × 190 × 35 | Point-to-point or coverage panel link |
| WIFI Antenna 5GHz Outdoor MIMO Directional Sector Antenna | Sector, directional, MIMO | 5150-5850 MHz | 15 | 90° × 8° | 510 × 128 × 58 | Base-station style sector coverage |

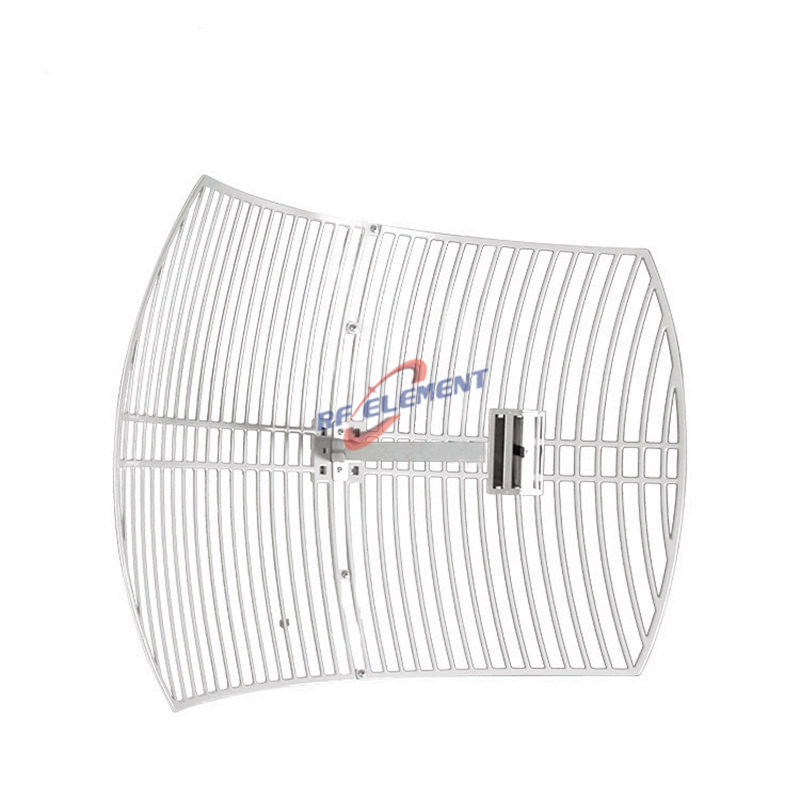

| WiFi Antenna Dual Band Parabolic Grid Antenna, 2.4/5GHz,15dBi | Parabolic grid, directional | 2400-2500 / 5150-5850 MHz | 15 / 16 | 16° × 21° | 300 × 400 | Long-distance point-to-point backhaul |
| WiFi Antenna Dual Band Outdoor MIMO Directional Panel Antenna | Panel, directional, MIMO | 2400-2500 / 5150-5850 MHz | 16±1 / 18±1 | 30° × 18° / 25° × 16° | 350 × 350 × 45 | Point-to-point or coverage panel link |
| WiFi Antenna Dual Band Parabolic Grid Antenna, 2.4/5GHz,21dBi | Parabolic grid, directional | 2400-2500 / 5150-5850 MHz | 21 / 22 | 12° × 15° | 600 × 900 | Long-distance point-to-point backhaul |
| WIFI Antenna 5GHz Dual Polarized 60cm Parabolic Dish Antenna | Parabolic dish, directional, MIMO | 4900-6000 MHz | 28 - 30 (±0.5) | 5±0.5° × 5±0.5° | Φ600 | Long-distance point-to-point backhaul |
| WIFI Antenna 5GHz Dual Polarized 90cm Parabolic Dish Antenna | Parabolic dish, directional, MIMO | 4900-6000 MHz | 31 - 34 (±0.5) | 4±0.5° × 3±0.5° | Φ900 | Long-distance point-to-point backhaul |
Looking for the rest of the range? Page 2 lists the 2.4GHz panel and yagi, 5GHz sector, panel and bridge, and the dual band omni, panel and router antennas — see WiFi antennas page 2. For a model recommendation, send the band and the coverage area through contact us.
Related Reading
Technical notes from our engineering team on WiFi antenna selection and hotspot coverage.
- 2.4GHz WiFi Panel Antennas in IoT Systems
Why panel antennas beat rubber ducks when 2.4GHz links have to punch through concrete and metal racking.
- Choosing a WiFi Antenna for Hotspot Coverage
A practical checklist for matching antenna type and gain to real hotspot environments.
- The 5GHz MIMO Dish Antenna for Robust Applications
Long-range 5 GHz links where gain and beamwidth, not cost, decide which antenna wins.
Industry Applications
Wi-Fi antennas are chosen by the link, not by the router. These deployments treat wireless as infrastructure.
- WISP and fixed wireless antennas
Wireless ISP links use the same panels and grids as enterprise Wi-Fi, at a longer range.
- Port and crane antennas
Yard and quay Wi-Fi covers moving vehicles across reflective steel, which is its own problem.
WiFi Antenna - Frequently Asked Questions
Questions about our 2.4 GHz, 5 GHz and dual band WiFi antennas.
Which WiFi bands do your antennas cover?
We manufacture single band 2.4 GHz antennas covering 2400-2500 MHz, single band 5 GHz antennas covering 5150-5850 MHz, and dual band models covering 2.4 and 5 GHz in one housing. For dedicated 5 GHz point-to-point links we also build dual-polarized parabolic dishes covering 4900-6000 MHz.
What is the highest gain available for long distance WiFi links?
Our dual band parabolic grid antenna reaches 21 dBi across 2.4/5 GHz. For point-to-point 5 GHz links, the dual-polarized parabolic dish antennas are available as a 60 cm version at 29 dBi and a 90 cm version at 34 dBi.
Do you make MIMO WiFi antennas for outdoor backhaul or sector coverage?
Yes. Outdoor 2x2 MIMO omni antennas are available at 2.4/5 GHz with 9 dBi gain, dual band MIMO sector antennas at 16 dBi, and dual band MIMO directional panel antennas at 19 dBi. Single band sector and panel models are also available for 2.4 GHz and 5 GHz separately.
How is WiFi antenna performance verified?
Each design is characterised in our own microwave anechoic chamber for gain, radiation pattern and port-to-port isolation, and VSWR is swept across the full operating band. Measured pattern data can be supplied with evaluation samples so the link budget can be modelled before deployment.
Can these antennas be customized for a specific band, gain or mounting?
Yes. Custom frequency bands, gain, beamwidth, polarization, connector type and mounting hardware are all available, including OEM and ODM projects and private labeling. A custom variant normally starts from an existing platform, and sample lead time is 3-5 working days.
Planning a WiFi link or coverage project? Send us the distance and the band - we reply within 1-2 working hours.
