5G Horn Antenna: High-Performance 5G Directional Solutions
The 5G horn antenna has emerged as a critical component in modern wireless communication infrastructure. As 5G networks continue to expand globally, the demand for high-performance 5G horn antennas has grown exponentially. These specialized directional antennas offer exceptional gain, precise beam control, and excellent front-to-back ratio—making them ideal for 5G millimeter wave (mmWave) applications, backhaul links, and high-capacity small cell deployments.
At RF element, we engineer 5G horn antennas that deliver superior performance across the entire 5G spectrum, from sub-6GHz to mmWave frequencies (24-71GHz). Our advanced designs support the rigorous requirements of 5G NR (New Radio) standards, ensuring reliable connectivity for enhanced mobile broadband (eMBB), ultra-reliable low-latency communications (URLLC), and massive machine-type communications (mMTC).
What is a 5G Horn Antenna?
A 5G horn antenna is a directional antenna that uses a flared metal waveguide to transmit and receive radio waves. The horn shape provides high gain, low VSWR (Voltage Standing Wave Ratio), and broad bandwidth—essential characteristics for 5G high-frequency operation. Unlike traditional panel or dipole antennas, 5G horn antennas concentrate energy in a specific direction, minimizing interference and maximizing signal strength over long distances.

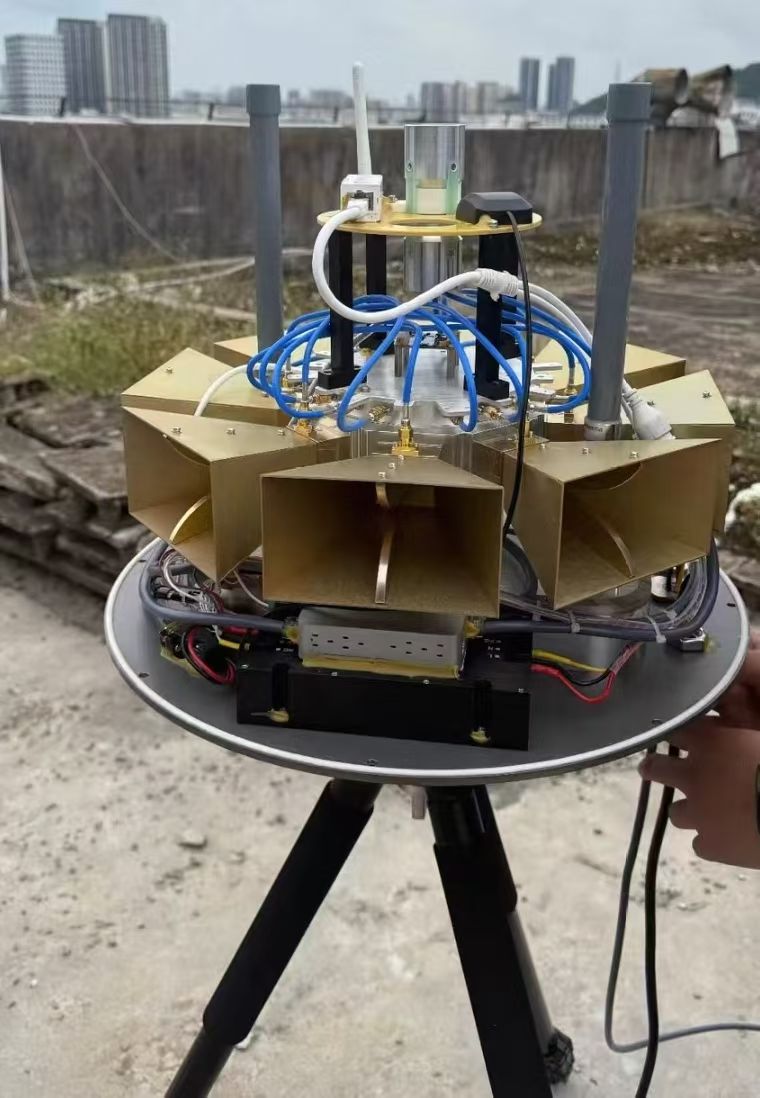

The 5G horn antenna design typically features dual-linear or circular polarization, supporting 2x2 or 4x4 MIMO configurations required for 5G massive MIMO systems. The image above showcases a multi-horn 5G antenna array, demonstrating how multiple 5G horn antenna elements can be integrated to create beamforming-capable systems for 5G base stations and test platforms.
Key Applications of 5G Horn Antenna
1. 5G Millimeter Wave (mmWave) Communications
5G horn antennas are indispensable for mmWave 5G deployments (24GHz, 28GHz, 39GHz, 60GHz). At these frequencies, signal propagation is limited, requiring high-gain directional antennas to overcome path loss. A 5G horn antenna provides 15-25 dBi gain, enabling gigabit-speed data transmission over hundreds of meters—perfect for 5G fixed wireless access (FWA) and dense urban small cells.
2. 5G Backhaul and Fronthaul Links
For 5G network backhaul, 5G horn antennas establish high-capacity point-to-point (PTP) links between gNodeB base stations and core networks. Their narrow beamwidth (10°-30°) reduces interference in crowded spectrum environments, while robust weatherproof construction ensures reliability in outdoor installations.
3. 5G Test and Measurement Systems
The 5G horn antenna shown in the image represents a multi-element test array—commonly used in 5G OTA (Over-The-Air) testing, beamforming validation, and RF performance characterization. Engineers rely on precision 5G horn antennas for anechoic chamber measurements, MIMO throughput testing, and 5G device certification.
4. 5G Indoor Distributed Antenna Systems (DAS)
While primarily outdoor devices, compact 5G horn antenna designs are increasingly deployed in high-capacity indoor venues—stadiums, convention centers, and airports—where directional spot coverage complements omnidirectional DAS antennas.
Our 5G horn antennas feature ruggedized aluminum construction, IP67 weatherproofing, and wide operational temperature ranges (-40°C to +65°C)—ensuring longevity in harsh outdoor 5G deployments.
Why Choose RF element 5G Horn Antenna?
Superior RF Performance
Every 5G horn antenna undergoes rigorous anechoic chamber testing and PIM validation. We guarantee pattern consistency, gain accuracy, and intermodulation performance that exceeds 3GPP 5G NR requirements.
Customization Capabilities
Beyond standard 5G horn antenna models, RF element offers custom frequency bands, specialized beamwidths, and integrated radome designs. Our engineering team collaborates with clients to develop application-specific 5G horn antenna solutions for private 5G networks, military communications, and satellite integration.
Mass MIMO Integration
The multi-horn architecture visible in our product image enables digital beamforming and 3D beam steering—critical for 5G massive MIMO gNodeB implementations. We provide 5G horn antenna arrays with calibrated phase coherence for optimal network performance.
5G Horn Antenna Installation Best Practices
To maximize 5G horn antenna performance:
Align precisely—Use digital inclinometers to achieve ±1° azimuth/elevation accuracy
Minimize obstruction—Maintain Fresnel zone clearance for PTP 5G links
Ground properly—Ensure lightning protection and PIM-free connections
Test thoroughly—Verify VSWR, return loss, and throughput before commissioning
As 5G networks evolve toward 5G-Advanced and 6G, the 5G horn antenna will remain foundational for high-frequency, high-capacity wireless infrastructure. Whether for mmWave small cells, fronthaul backhaul, or test laboratory environments, 5G horn antennas deliver the directional precision and RF purity that next-generation networks demand.
RF element stands ready as your 5G horn antenna manufacturing partner. From standard catalog products to fully customized 5G antenna solutions, our engineering expertise ensures your 5G deployment success.
