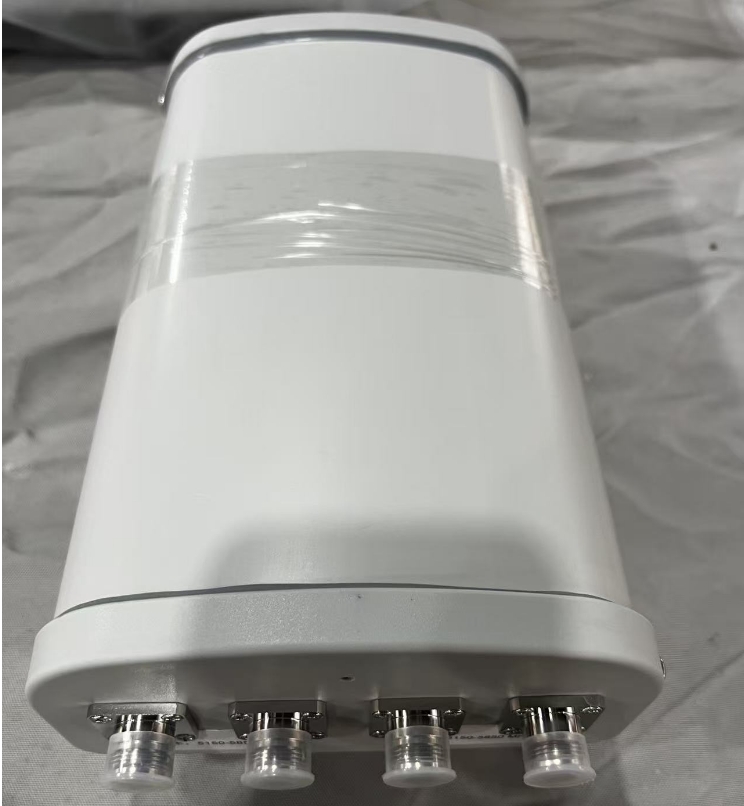

Dual Band  Sector Antenna
1, Frequency range: 2400-2500MHz & 5150-5850MHz
2, Gain: 13-15dBi
3, Polarization: ±45°
4, Half power beam width: H 65°, V 40°

Specifications

Client Challenge

A leading mining communication systems integrator required a rugged dual band sector antenna for coal mining operations with strict requirements:

  • Frequency Coverage: Simultaneous 2.4GHz (2400-2500MHz) + 5.8GHz (5150-5850MHz) operation

  • Radiation Pattern: Horizontal beamwidth >60° for wide coverage in tunnel networks

  • High Gain: >12dBi at 2.4GHz / >15dBi at 5.8GHz to penetrate dense rock structures

  • Harsh Environment: IP67-rated, corrosion-resistant, and explosion-proof certification


Engineering Innovation

Breaking Conventional Design Limitations

Traditional die-cast radiators couldn’t balance wide beamwidth and high gain.

dual band sector antenna.jpg

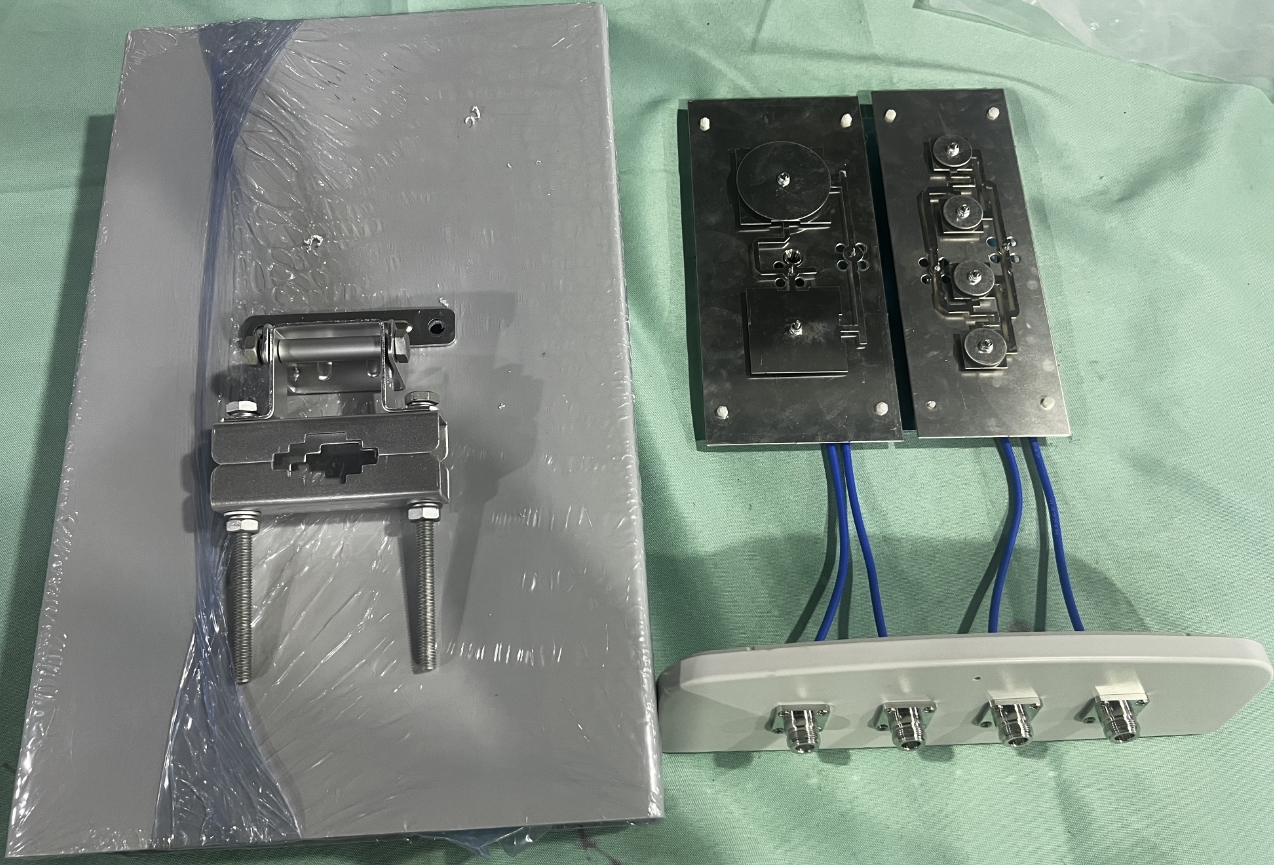

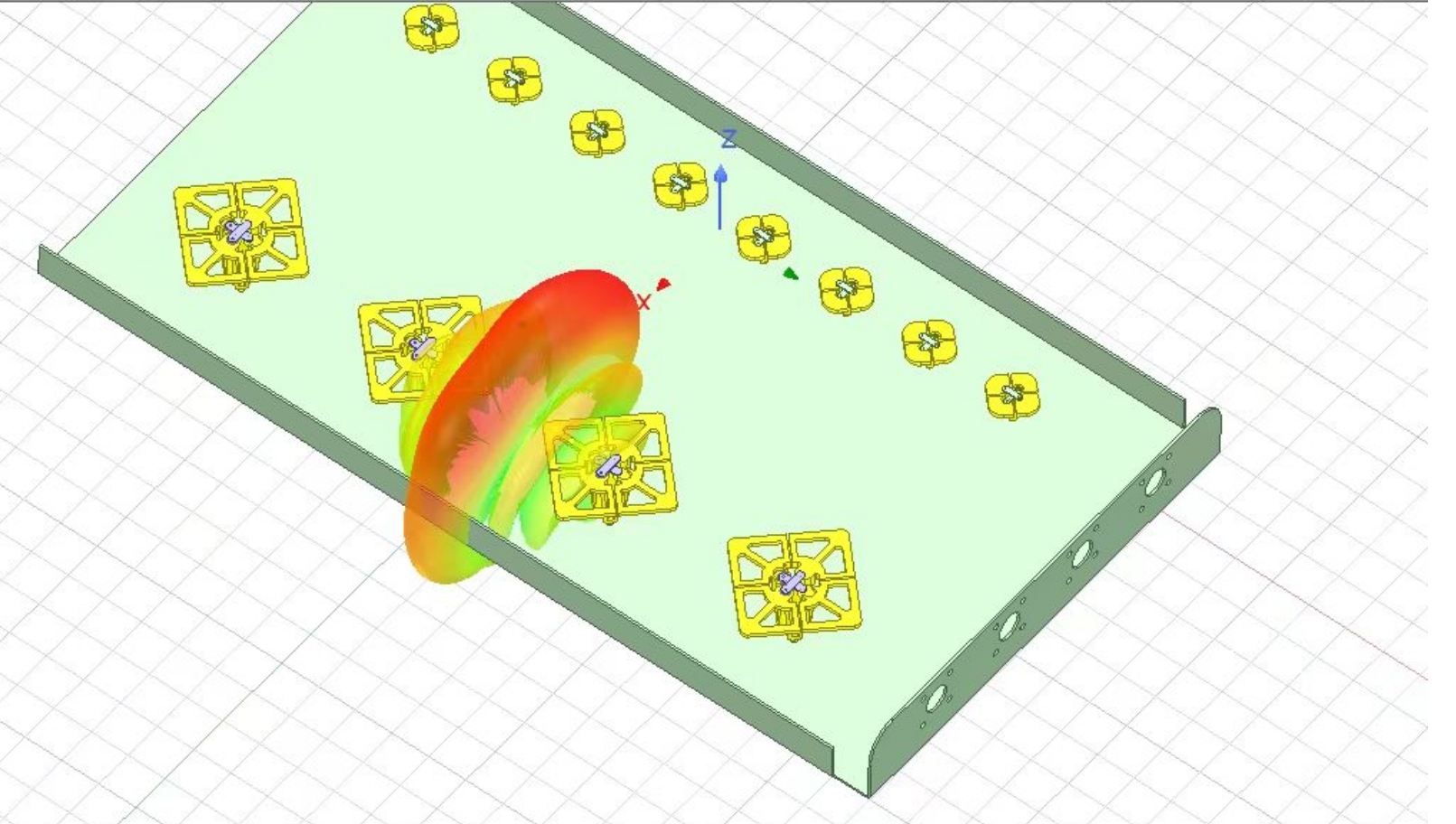

Our R&D team pioneered a laser-cut aluminum sheet radiation structure with:


  • Precision Tuning: 0.1mm tolerance slots to control current distribution

  • Multi-Resonant Elements: Nested dipole arrays for independent band optimization

  • Lightweight Construction: 40% weight reduction vs. die-cast alternatives

Performance Trade-Off Resolution

ParameterConventional DesignRF Element’s Solution
Horizontal Beamwidth≤45°62°
Gain (2.4GHz)10-11dBi12.5dBi
Gain (5.8GHz)13-14dBi15.8dBi
Weight3.2kg1.9kg


Technical Specifications

ModelRFE-DBSA-M2400/5800
Frequency Bands2400-2500MHz + 5150-5850MHz
Gain12.5dBi @ 2.4GHz / 15.8dBi @ 5.8GHz
Beamwidth (H/V)62° x 14° @ 2.4GHz
58° x 8° @ 5.8GHz
PolarizationDual-slant ±45°
VSWR≤1.5:1
Power Handling100W continuous
Connector2 x N-Female
Operating Temp-40°C to +85°C
Ingress ProtectionIP67
MaterialLaser-cut 6061 aluminum + UV-stabilized radome


Field Results in Mining Deployment

1. Coverage Enhancement

  • Tunnel Penetration: 30% signal strength improvement vs. previous antennas

  • Interference Immunity: -25dB cross-band isolation eliminated 2.4GHz/5.8GHz crosstalk

2. Reliability Metrics

  • Zero Failures: 12-month operation in coal dust/humidity extremes

  • Maintenance Cost: Reduced by 60% due to no corrosion/delamination

3. Deployment Scale

  • 200+ units installed across 3 mining complexes

  • 7km maximum point-to-multipoint link distance achieved


Why This Dual Band Sector Antenna Succeeded

1. Laser-Cutting Advantages

  • Pattern Flexibility: Optimized slot geometry for beamwidth/gain balance

  • Thermal Stability: Uniform heat dissipation prevented distortion at high power

2. Mining-Specific Validation

  • MSHA Certification: Met mining safety standards for explosive atmospheres



Client Testimonial

"RF Element’s dual band sector antenna solved our coverage-depth dilemma in underground mines. Their willingness to abandon conventional approaches and deliver a purpose-built solution enabled seamless VoIP and sensor monitoring across our toughest sites."
— Chief Engineer, Mining Communication Systems Ltd.
