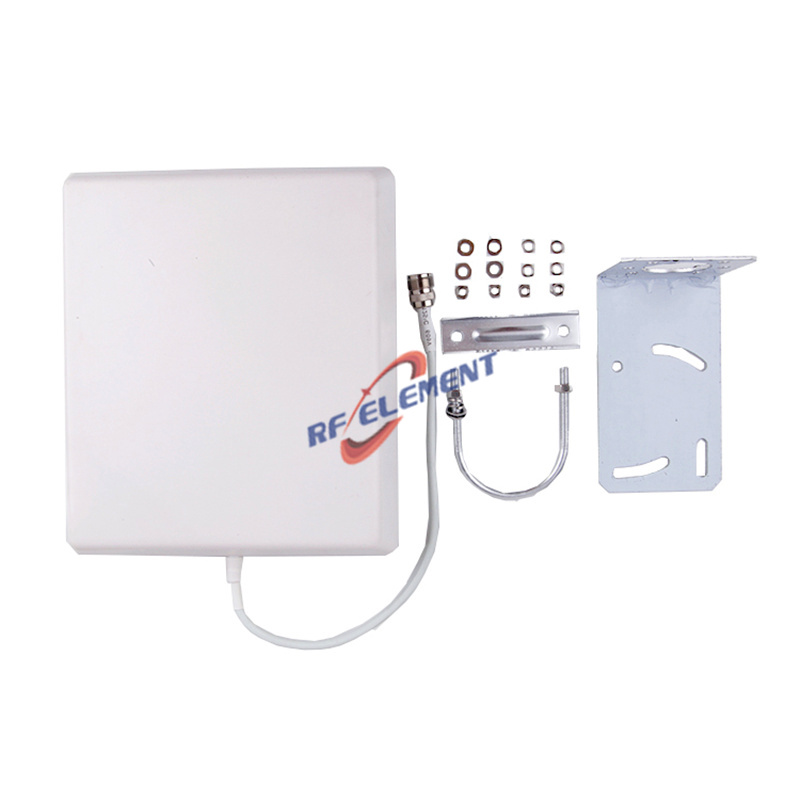

5G Outdoor Ultra Wide Band Pole Mounting Directional Panel Antenna (698-4200MHz)
Maximize your outdoor wireless network performance with RF Element's Ultra Wide Band Pole Mounting Directional Panel Antenna. This 7dBi gain, low PIM antenna covers 698-4200MHz, ensuring compatibility with 5G, 4G/LTE, 3G, GSM, and Wi-Fi. Designed for DAS systems, it's perfect for distributing signals across large areas. Get a quote now for enhanced coverage!
This 4G 5G SISO pole mounting panel antenna is a low PIM rated, high performance directional antenna, specifically designed for outdoor wireless networks such as DAS (Distributed Antenna Systems), idea for outdoor distribution of 5G, 4G/LTE, GSM/CDMA applications. The SISO design and the ultrathin radome make this panel antenna with low profile. The multiband design eliminates the need to purchase different antennas for each frequency. The hign antenna gain from 5dBi to 7dBi, can be used to distribute Cellular and WiFi signals throughout a building or area.
| Frequency Range | 698-4200MHz | ||||
| Frequency Sub-Range(Mhz) | 698-806 | 806-960 | 1710-2700 | 3300-3800 | 3800-4200 |
| Polarization | ±45° | ||||
| Gain(dBi) | 5±0.5 | 6±0.5 | 7±0.5 | 6±0.5 | 6±0.5 |
| Horizontal Beam width | 90±10° | 90±10° | 75±20° | 50±20° | 50±20° |
| Vertical Beam width | 90±10° | 85±10° | 65±20° | 40±20° | 40±20° |
| Impedance | 50Ω | ||||
| VSWR | ≤ 1.8 | ≤ 1.5 | ≤ 1.6 | ≤1.6 | ≤2.0 |
| 3rd Order for 2×20 W Carriers | -153 dBc | ||||
| Front-to-Back Ratio | ≥ 10dB | ≥ 10dB | ≥ 15dB | ≥ 15dB | ≥ 10dB |
| Maximum Power | 50 W | ||||
| Connector Type | 1 Port, 4.3-10 Female or N-Type Female | ||||
| Length | 165 mm | ||||
| Width | 155 mm | ||||
| Depth | 50 mm | ||||
| Net Weight | 0.4 kg | ||||
| Operating Temperature | -55° to +60° C (-67° to +140° F) | ||||
| Radome Material | Plastic ABS | ||||
| Radome Color | White | ||||
| Mounting Options | Fasteners and screws included for wall mounting | ||||
If any product meets your demand, please contact us for the quotations. We're sure your any inquiry or requirement will get prompt attention.
