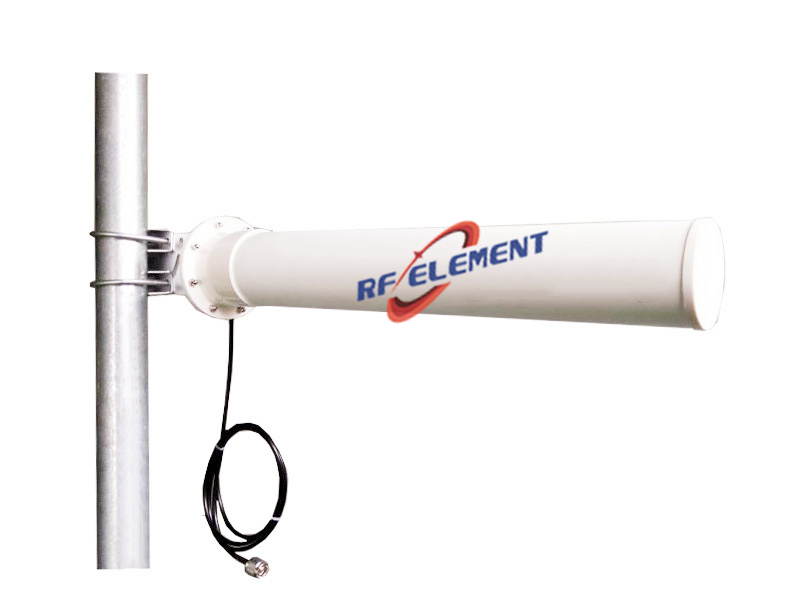

2.4GHz WiFi Yagi Antenna | High Gain Yagi Antenna with Radome
Expand your Wi-Fi coverage with RF element's High Gain 2.4GHz Yagi Antenna. This rugged, weatherproof antenna offers a 15dBi gain for enhanced signal strength and is ideal for point-to-point and point-to-multipoint applications. Suitable for outdoor use and easy installation. Contact us for a quote today!
Specifications
RF element 2.4GHz WiFi Yagi Antenna is your gateway to enhanced outdoor WiFi connectivity. With a high gain of 15dBi and a radome for protection, it's designed for the 2400-2500MHz band, ideal for point-to-point and multipoint Wi-Fi applications.This yagi antenna is a perfect fit for IEEE 802.11b/g/n networks, Bluetooth, and public hotspots, ensuring robust signals across the 2.4GHz ISM band. Its compact design and pole-mounting options make it versatile for various setups.
| Frequency Range | 2400-2500MHz | |
| Polarization | Vertical | |
| Gain(dBi) | 15 | |
| Horizontal Beamwidth | 33° | |
| Vertical Beamwidth | 30° | |
| Impedance | 50Ω | |
| VSWR | ≤ 1.5 | |
| Maximum Power | 50W | |
| Connector Type | 1Port, N-Type Male | |
| Antenna Dimension(mm) | Φ75*505 | |
| Net Weight | 1.5 kg | |
| Operating Temperature | -55° to +60° C (-67° to +140° F) | |
| Radome Material | ABS | |
| Radome Color | White | |
| Mounting Options | Pole mounting | |
If any product meets your demand, please contact us for the quotations. We're sure your any inquiry or requirement will get prompt attention.
keywords：2.4ghz yagi antenna,wifi yagi antenna,high gain yagi antenna
FAQ — 2.4GHz WiFi Yagi Antenna
What is the 2.4GHz WiFi Yagi Antenna used for?
RF element 2.4GHz WiFi Yagi Antenna is your gateway to enhanced outdoor WiFi connectivity. With a high gain of 15dBi and a radome for protection, it's designed for the 2400-2500MHz band, ideal for point-to-point and multipoint Wi-Fi applications.This yagi antenna is a perfect fit for IEEE 802.11b/g/n networks, Bluetooth, and public hotspots, ensuring robust signals across the 2.4GHz ISM band.
What frequency band does the 2.4GHz WiFi Yagi Antenna cover?
The 2.4GHz WiFi Yagi Antenna is specified for 2400-2500MHz. If your project uses an adjacent or custom band, send the target frequency plan and we will confirm feasibility on the same mechanical platform.
What are the key specifications of the 2.4GHz WiFi Yagi Antenna?
Key specifications of the 2.4GHz WiFi Yagi Antenna: frequency range 2400-2500MHz, gain 15 dBi, polarization Vertical, VSWR ≤ 1.5, connector 1Port, N-Type Male. The full electrical and mechanical table is listed above, and custom values are available on request.
Can RF element customize the 2.4GHz WiFi Yagi Antenna for my application?
Yes. RF element manufactures the 2.4GHz WiFi Yagi Antenna in house and supports OEM/ODM. Connector type, cable length, mounting hardware, radome colour and mechanical dimensions can all be changed, and gain or beamwidth can be retuned for your coverage plan.
What is the MOQ and lead time for the 2.4GHz WiFi Yagi Antenna?
RF element supports low MOQ to help customers scale from prototype to mass production. Typical lead time is 3-5 working days for samples and 15-25 working days for mass production. Contact sales@rfelement.com for a quotation.
How do I get a quotation for the 2.4GHz WiFi Yagi Antenna?
Send your requirements (frequency band, gain, quantity, application) to sales@rfelement.com or use the Contact Us page. Our engineering team responds within 1-2 hours during working hours.
