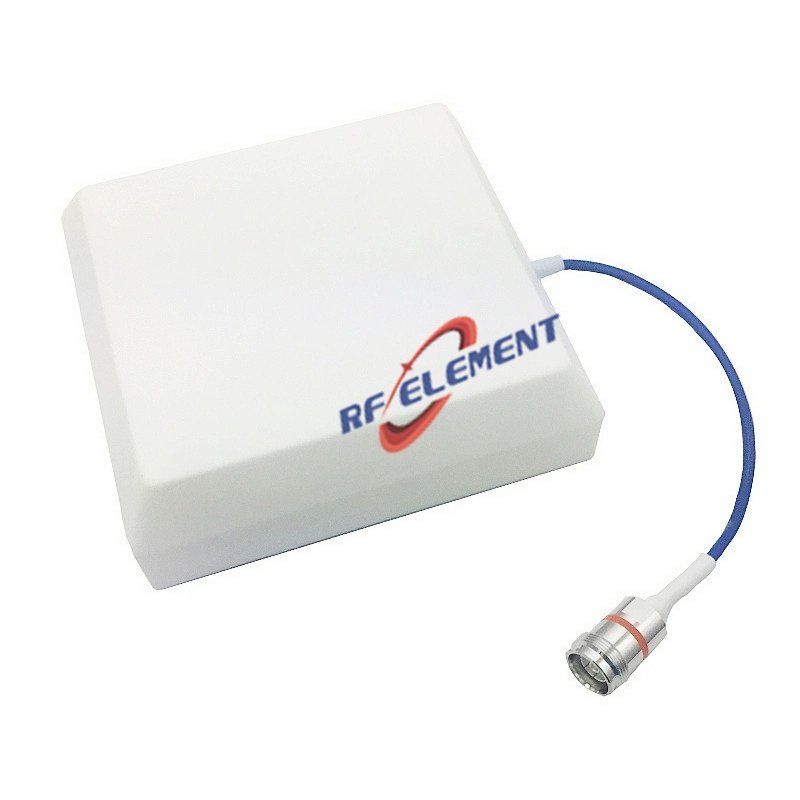

Low PIM(-150dBc@2x20W) 5G Indoor Panel Antenna (698-3800MHz)
This is a 3rd-order low PIM(-150dBc@2x20W), 5G wall mount indoor panel antenna with a frequency range of 698–3800 MHz. It is specifically designed for in-building wireless or outdoor networks, such as DAS (Distributed Antenna Systems). The multiband design eliminates the need to purchase different antennas for each frequency, making it ideal for 5G, 4G LTE, WiFi, and LoRa applications. The antenna features a SISO (Single Input Single Output) design and an ultra-thin radome, contributing to its low profile. With a high antenna gain ranging from 6dBi to 7dBi, it can be used to effectively distribute cellular and WiFi signals throughout a building or area.
Frequency Range | 698-3800MHz | ||
Frequency Sub-Range(Mhz) | 698-960 | 1710-2700 | 3300-3800 |
Polarization | Vertical | ||
Gain(dBi) | 6 | 7 | 7 |
Horizontal Beam width | 90±15° | 60±20° | 50±20° |
Vertical Beam width | 85° | 55° | 40° |
Impedance | 50Ω | ||
VSWR | ≤ 1.8 | ≤ 1.6 | ≤1.8 |
PIM, 3rd Order | -153 dBc@2x43dBm | ||
Front-to-Back Ratio | ≥ 10dB | ≥ 15dB | ≥ 15dB |
Maximum Power | 50 W | ||

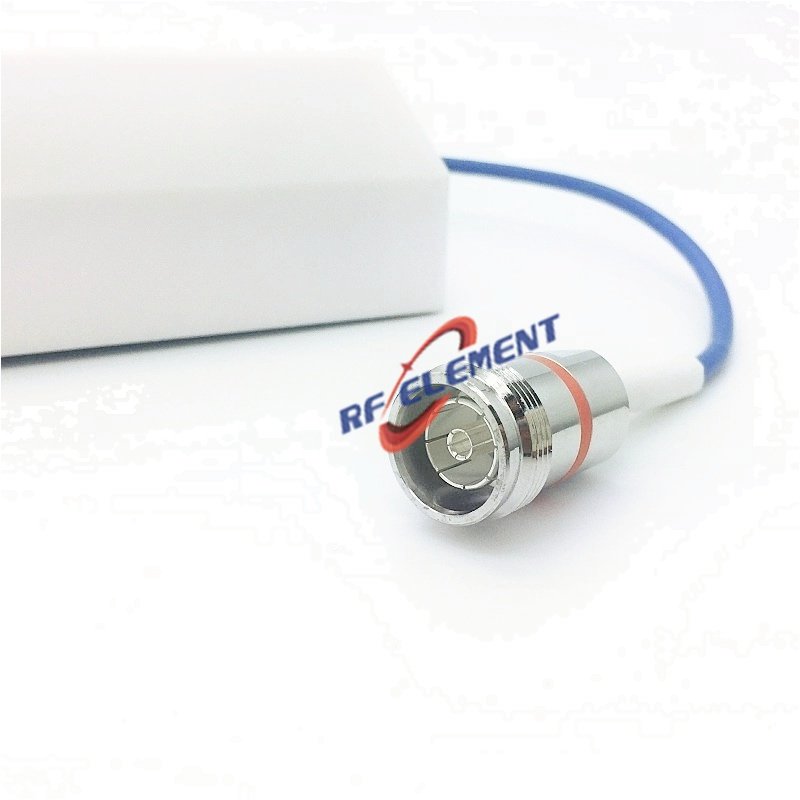

Connector Type | 1 Port, 4.3-10 Female | ||
Dimension | 165*155*45 mm | ||
Net Weight | 0.4 kg | ||
Packing Size | 64*28*35 cm(20 pcs) | ||
Radome Material | Plastic ABS | ||
Operating Temperature | -55° to +60° C (-67° to +140° F) | ||
Mounting Options | wall mounting or pole mounting(Optional) |
