4G 5G Antenna Outdoor MIMO 2x2 Pole Mounting Panel Antenna, 698-4200MHz,8dBi

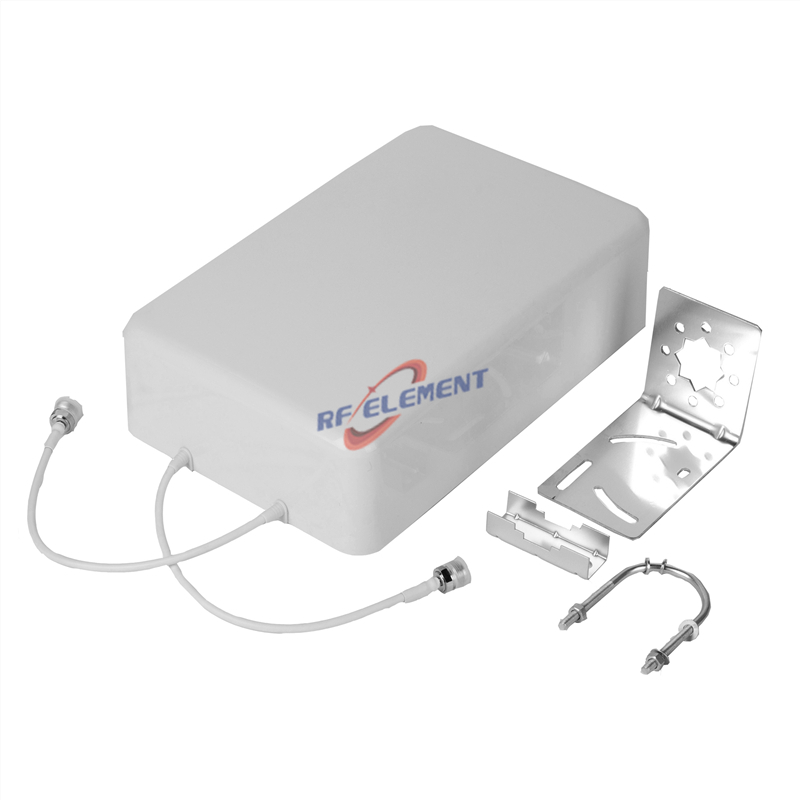

4G 5G Antenna Outdoor MIMO 2x2 Pole Mounting Panel Antenna
1, Wide Frequency coverage 698MHz to 4200MHz with high performance fit all wireless applications.
2, Seamless implement and perfect matching for 5G, 4G/LTE, 3G, GSM, WIFI frequency band operations.
3, Low PIM,(<-153 dBc @ 2x20W) meets the most demanding PIM requirements for 5G and LTE/4G bands
4, Quick and Easy installations for all wireless applications. Perfect for DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area.
keywords：4g 5g antenna,4g lte antenna,mimo panel antenna,2x2 mimo antenna,low pim mimo antenna,das antenna,cellular antenna
This 4G 5G mimo 2x2 panel antenna is a low PIM rated, high performance pole mounting directional antenna, specifically designed for outdoor wireless networks such as DAS (Distributed Antenna Systems), idea for outdoor distribution of 5G, 4G/LTE, GSM/CDMA applications. The 2x2 MIMO design can increase the 4G 5G data speeds up to 2x that of a single antenna. The multiband design eliminates the need to purchase different antennas for each frequency. The hign antenna gain from 6dBi to 8dBi, can be used to distribute Cellular and WiFi signals throughout a building or area.
| Frequency Range | 698-4200MHz | |||||
| Frequency Sub-Range(Mhz) | 698-806 | 806-960 | 1350-1550 | 1710-2700 | 3300-3800 | 3800-4200 |
| Polarization | ±45° | |||||
| Gain(dBi) | 5±0.5 | 6.5±0.5 | 6±0.5 | 8±0.5 | 6±0.5 | 5±0.5 |
| Horizontal Beam width | 80±10° | 80±10° | 70±10° | 70±10° | 60±10° | 60±10° |
| Vertical Beam width | 50±10° | 50±10° | 40±10° | 35±10° | 40±10° | 40±10° |
| Impedance | 50Ω | |||||
| VSWR | ≤ 1.8 | ≤ 1.8 | ≤ 1.6 | ≤1.6 | ≤1.8 | ≤2.0 |
| 3rd Order for 2×20 W Carriers | -153 dBc | |||||
| Front-to-Back Ratio | ≥ 10dB | ≥ 10dB | ≥ 10dB | ≥ 15dB | ≥ 15dB | ≥ 15dB |
| Isolation | ≥ 20dB | ≥ 20dB | ≥ 20dB | ≥ 25dB | ≥ 25dB | ≥ 25dB |
| Maximum Power | 50 W | |||||
| Connector Type | 2 Port, 4.3-10 Female or N-Type Female | |||||
| Length | 310 mm | |||||
| Width | 230 mm | |||||
| Depth | 73 mm | |||||
| Net Weight | 1.0 kg | |||||
| Operating Temperature | -55° to +60° C (-67° to +140° F) | |||||
| Radome Material | Plastic ABS | |||||
| Radome Color | White | |||||
| Mounting Options | Pole Mounting | |||||
